energy & Hydraulic Electric Automatic Stirrup Bending Machine Metal Rebar Folding Bending Machine CNC Extracting Bending Machine

1.0 set
MOQ
energy & Hydraulic Electric Automatic Stirrup Bending Machine Metal Rebar Folding Bending Machine CNC Extracting Bending Machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty of core components: 3 years
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Material / Metal Processed: Aluminium alloy, Aluminum, ALLOY, Stainless Steel, Carbon steel
Automation: Automatic
Year: NEW
Weight (KG): 3000
Key Selling Points: Automatic
Warranty: 3 years
Motor Power (kW): 18
Applicable Industries: Energy & Mining, Machinery Repair Shops, Manufacturing Plant, Construction works , Garment Shops, Building Material Shops
Showroom Location: None
Product name: CNC Rebar bending machine
model number: 12S
Max bending angle: 360°
Length scope of the stirrup side: 60-1300mm
Max feeding speed (m/min): 2300
Length tolerance (mm): ±1
Angle tolerance (°): 0.1°
Motor power (kW): 20(servo moter)+7.5(servo moter)+4.0kw
Dimensions: 3400*1200*1800
Machine weight (kg): 2800
Local Service Location: None
Certificação: ISO 9001:2000, ce
After-sales Service Provided: Online support, Free spare parts, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Informação básica
Certificação: ISO 9001:2000, ce
Model Number: 12S
Condições de Pagamento e Envio
Packaging Details: Wooden packed
Supply Ability: 200 Set/Sets per Month
Descrição de produto
Products Description

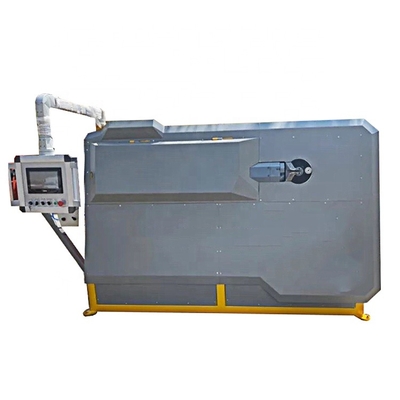

CNC Rebar bending machine


CNC Rebar Stirrup Bending Machine from feeding, descaling, straightening extends curved shape, cut a variety of processes single one alive, directly produced a variety of specifications of various sizes, fully meet the design requirements . A variety of specifications can be processed in various sizes square, rectangle , diamond, polygon, etc.

CNC Rebar Stirrup Bending Machine can automatically complete straightening steel , length, bend-shaping and cutting and other functions , saving time , high production efficiency can be achieved automatic , uninterrupted processing operation .

CNC Rebar stirrup_bending_machine is widely used in railways ,highways , bridges , real estate, steel plants and other larges areas.
型号
model number
HH4-12S
单线加工能力(mm)
Single line working ability (mm)
圆钢
Grade 1 round bar
Φ4-12
三级螺纹钢
Grade 3 rebar
Φ4-10
双线加工能力(mm)
Double line working ability (mm)
圆钢
Grade 1 round bar
Φ4-8
三级螺纹钢
Grade 3 rebar
Φ4-8
边长加工范围
Length scope of the stirrup side
60-1300mm
最大弯曲角度
Max bending angle
360°
最大加工速度(m/h)
Max feeding speed (m/min)
2300
长度精度(mm)
Length tolerance (mm)
±1
角度精度(°)
Angle tolerance (°)
0.1°
弯头离地高度(mm)
Bending center height from ground (mm)
1300
电机功率(kw)
Motor power (kW)
【11(servo moter)+5.5(servo moter)+4.0kw】
尺寸
Dimensions(L*W*H) (mm)
3400*1200*1800*
重量(kg)
Machine weight (kg)
2500
Utility model patent certificate
Utility model patent certificate
Our company has obtained 18 pcs patent certificates
